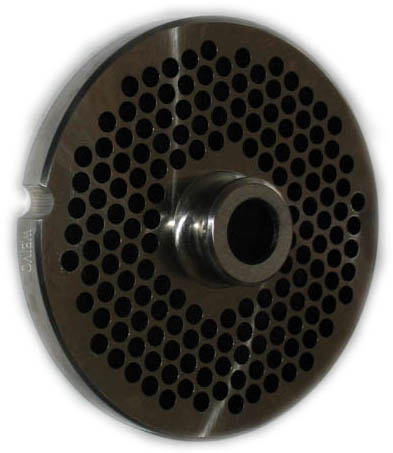

meat grinder plate with hub

MEAT PROCESSING MACHINERY WWW.WEIVO.COM

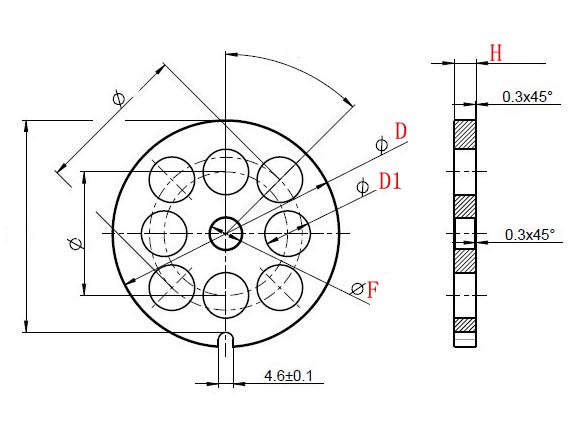

WEIVO Meat Grinder Cutting Blade

WEIVO Standard

Grinder Size	D1 Plate Diameter	D mm
#5	8.3	53.1
#7	8.1	57.5
#8	9	61.7
#10 / #12	9.9	69.7
#20 / #22	11.2	82.6
#22	13.1	99.7
#42	20.1	130

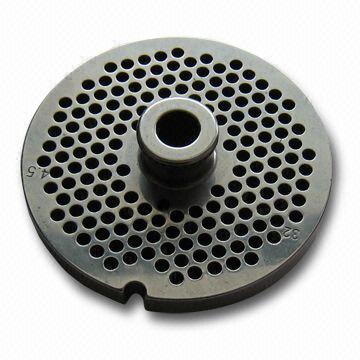

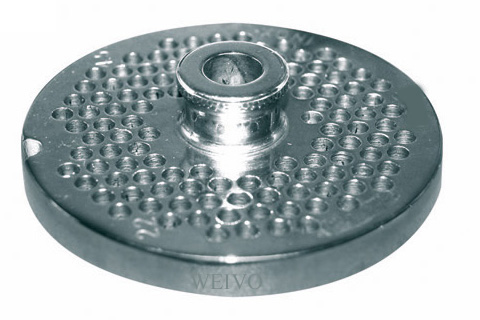

Stainless steel Meat Mincer Plate with hub No.32
With 4.5mm hole
Materials: 9Cr18/51440C/440C/SUS440C
Hardness: HRC58-60
Use for No.32 electric meat grinder
Customer design hole size available
Sample available

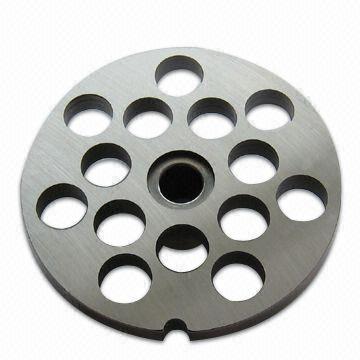

Stainless steel meat grinder disk with Hub No.32
With 16mm hole
Materials: 3Cr13, 51420, 420, 420S45 and SUS42012
Hardness: HRC50-55
Use for No.32 electric meat grinder
Customized designs and hole sizes are available
Samples are available

Hole Size	Suggested use
3/32" & 1/8"	Fine grind - Bologna, Franks, Forcemeats, Hamburger & Beef Jerky
5/32" & 3/16"	Medium grind - Breakfast Sausage, Hamburger, Polish & Italian Sausage
1/4" & 5/16"	Coarse grind - Hamburger, Salami, Summer Sausage, Pepperoni & Bratwurst
3/8"	Coarse grind - First grind, Chili meat & Chorizo
1/2"	Very Coarse - First grind, Chili meat, Stew meat & Vegetables
3/4"	Very Coarse - First grind or Chunking meat

STAINLESS STEEL PLATE FOR WEIVO MEAT MINCER N.12 mm. 3
STAINLESS STEEL PLATE FOR WEIVO MEAT MINCER N.12 mm. 4,5
STAINLESS STEEL PLATE FOR WEIVO MEAT MINCER N.12 mm. 6
STAINLESS STEEL PLATE FOR WEIVO MEAT MINCER N.12 mm. 8
STAINLESS STEEL PLATE FOR WEIVO MEAT MINCER N.12 mm. 10
STAINLESS STEEL PLATE FOR WEIVO MEAT MINCER N.12 mm. 12
STAINLESS STEEL PLATE FOR WEIVO MEAT MINCER N.12 mm. 14
STAINLESS STEEL PLATE FOR WEIVO MEAT MINCER N.12 mm. 16
STAINLESS STEEL PLATE FOR WEIVO MEAT MINCER N.12 mm. 18
STAINLESS STEEL PLATE FOR WEIVO MEAT MINCER N.12 mm. 20

STAINLESS STEEL PLATE FOR WEIVO MEAT MINCER N.22 mm. 3
STAINLESS STEEL PLATE FOR WEIVO MEAT MINCER N.22 mm. 4,5
STAINLESS STEEL PLATE FOR WEIVO MEAT MINCER N.22 mm. 6
STAINLESS STEEL PLATE FOR WEIVO MEAT MINCER N.22 mm. 8
STAINLESS STEEL PLATE FOR WEIVO MEAT MINCER N.22 mm. 10
STAINLESS STEEL PLATE FOR WEIVO MEAT MINCER N.22 mm. 12
STAINLESS STEEL PLATE FOR WEIVO MEAT MINCER N.22 mm. 14
STAINLESS STEEL PLATE FOR WEIVO MEAT MINCER N.22 mm. 16
STAINLESS STEEL PLATE FOR WEIVO MEAT MINCER N.22 mm. 18
STAINLESS STEEL PLATE FOR WEIVO MEAT MINCER N.22 mm. 20

STAINLESS STEEL PLATE FOR WEIVO MEAT MINCER N.32 mm. 3
STAINLESS STEEL PLATE FOR WEIVO MEAT MINCER N.32 mm. 4,5
STAINLESS STEEL PLATE FOR WEIVO MEAT MINCER N.32 mm. 6
STAINLESS STEEL PLATE FOR WEIVO MEAT MINCER N.32 mm. 8
STAINLESS STEEL PLATE FOR WEIVO MEAT MINCER N.32 mm. 10
STAINLESS STEEL PLATE FOR WEIVO MEAT MINCER N.32 mm. 12
STAINLESS STEEL PLATE FOR WEIVO MEAT MINCER N.32 mm. 14
STAINLESS STEEL PLATE FOR WEIVO MEAT MINCER N.32 mm. 16
STAINLESS STEEL PLATE FOR WEIVO MEAT MINCER N.32 mm. 18
STAINLESS STEEL PLATE FOR WEIVO MEAT MINCER N.32 mm. 20

Hardness:58-61HRC.
Hardness:60-64HRC
Hardness:50-54HRC.
Model:No.5,No.8, No.10, #12, #22, #32,#52
Customer design hole size available.
Sample available.

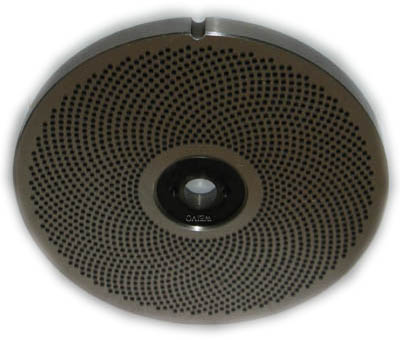

Stainless Steel Meat Mincer Disk with hub.


	1mm holes
Stainless steel 32-2	Stainless Steel

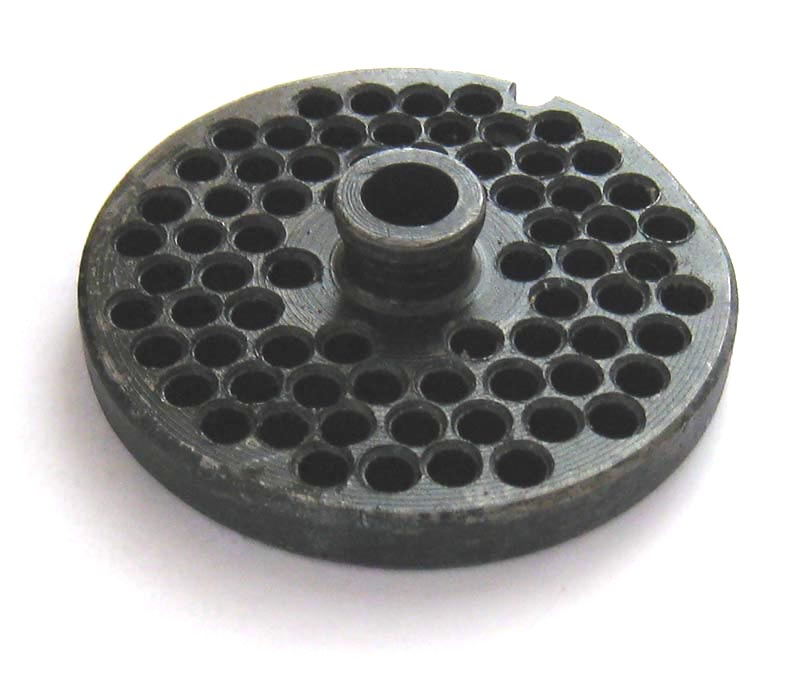

Carbon Steel with hub	Stainless Steel

USA

Grinder Size	Plate Diameter	mm
#5	2 1/8"	54
#8	2 1/2"	63.5
#10 / #12	2 3/4"	69.9
#20 / #22	3 1/4"	82.6
#32	3 7/8"	98.4

Shanghai

Grinder Size	Plate Diameter	mm
#5	2 1/8"	53.2	8.4	6.1
#8	2 1/2"	62	9.2	6.1
#10 / #12	2 3/4"	69.2	10.3	8.1
#20 / #22	3 1/4"	82.2	11.3	9.1
#32	3 7/8"	99.3	13.3	9.1

Germany

Grinder Size	Plate Diameter	mm
#5	8.3	53.1
#7	8.1	57.5
#8	9.3	61.6
#10 / #12	9.8	70
#10 / #12	17.1	69.6
#20 / #22		82.6
#32		98.4
