Pulverizer

Use the machine to crush corn. soy. sorghum.dried sweet potatoes,
soybean and other feed grains in powder.
For one time,all the raw material can be pulverized into powder and leaving no residue.

Also for chemical raw materials for the crushing, beating, and the Western paper processing.
So in the chemical pharmaceutical factory, food factory,paper mills and other industries condiment factory has been widely used.
In addition, the machine can crush fresh fruit, fresh sweet potato and soaked soybeans with mixing water etc.

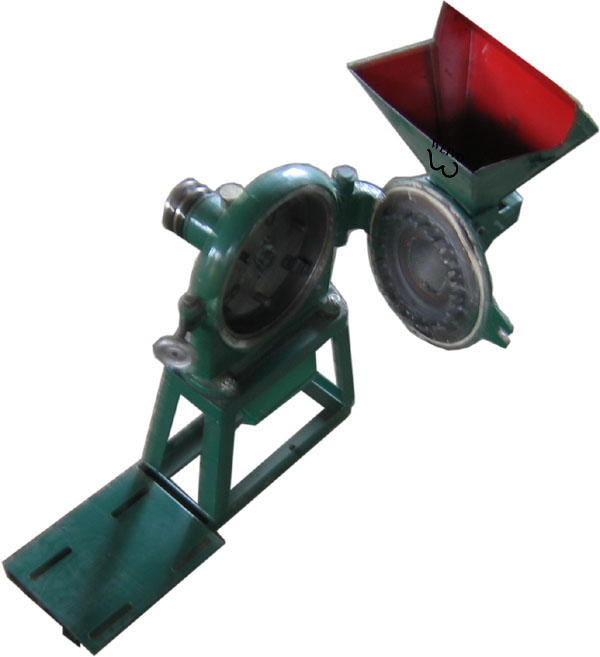

Picture 1

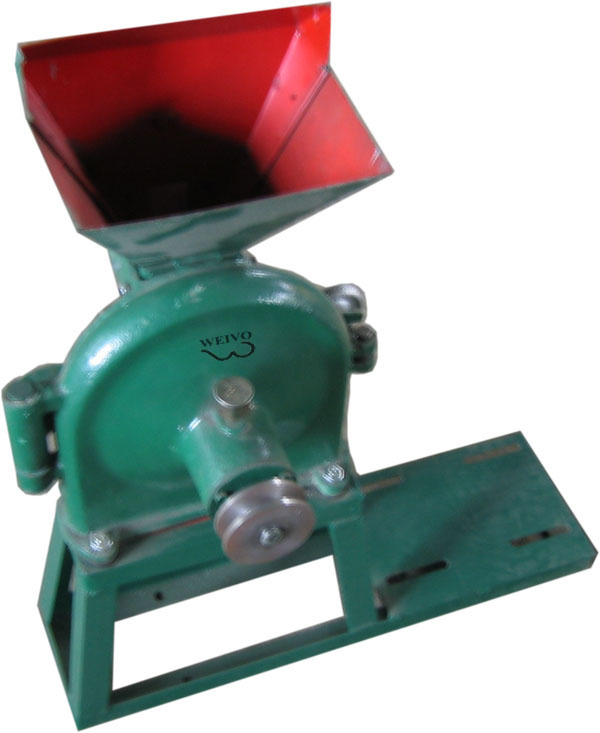

Picture 2

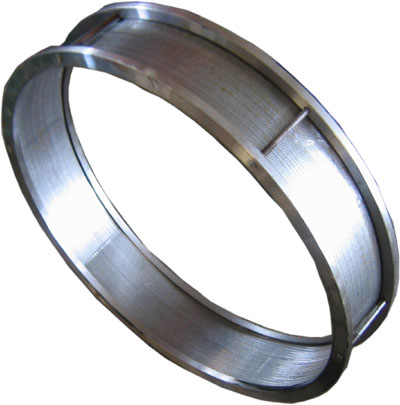

Stainless Steel Screen

Model	Unit	P45A	P37	P23	P15
Spindle speed	r/min	3000	3600	5800	9000
Rotor diameter (including the flat teeth)	mm	450	370	230	150
Rotor Flat teeth	pc	5	4	4	3
Rotor round Teeth	pc	12	8	8	3
Square Plate teeth laps	lap	2	2	2	1
Sieve diameter	mm	0.6,1.2,3.6	0.6,1.2,3.6	0.6,1.2,3.6	0.6,1.2
Motor:Power	kw	11	7.5	3	1.1
Speed	r/min	1450	1450	2840	2840
Size （L×W×H）	mm	1150×755 ×1425	1050×680 ×1325	800×500 ×1000	565×305 ×610
Weight（No Motor）	kg	224	158	65	18
Packing Size	mm	970×670 ×750	870×670 ×658	635×565 ×455	556×271 ×285
